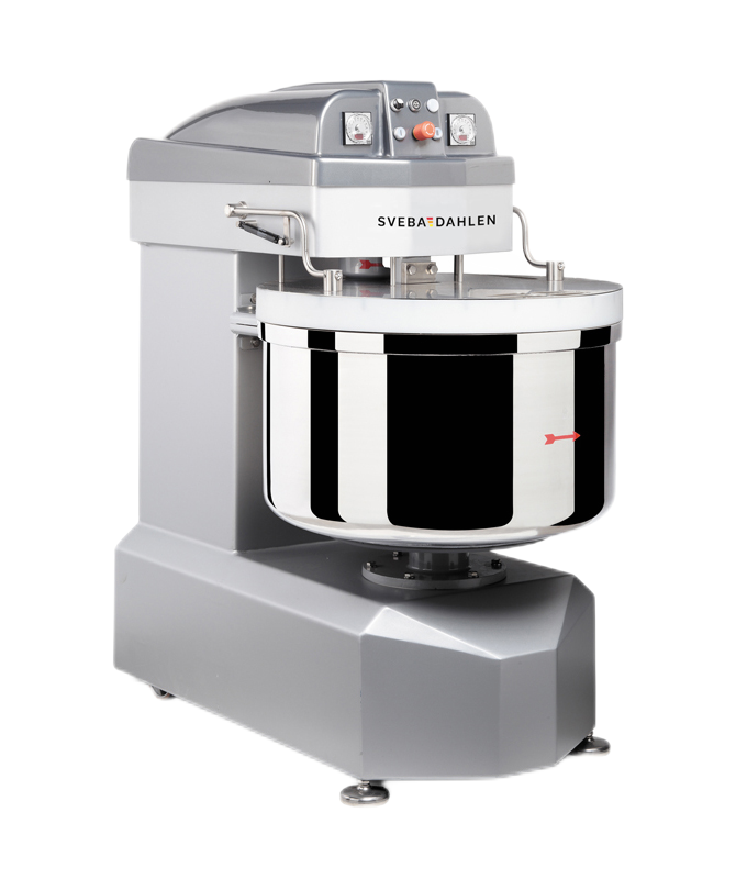

Fixed Bowl Spiral Mixer M PREMIUM
Fixed bowl spiral mixer is suitable for is suitable for all types of bakeries, designed for continuous operation, and is suitable for harder doughs.
The fixed rotating cylinder is equipped with two motors, allowing for bidirectional rotation at two speeds. At the first speed, the cylinder is allowed to reverse.
Equipped with a timer, compact structure, and easy-to-use functions. The motor system features dual belts, saving energy.
Equipped with a standard stainless steel mixing bowl, a stainless steel lid, as well as a rotating mixing tool and a brake strip.
Made of durable and reliable materials, with a long lifespan. Ergonomically designed structure. Optional touchscreen.

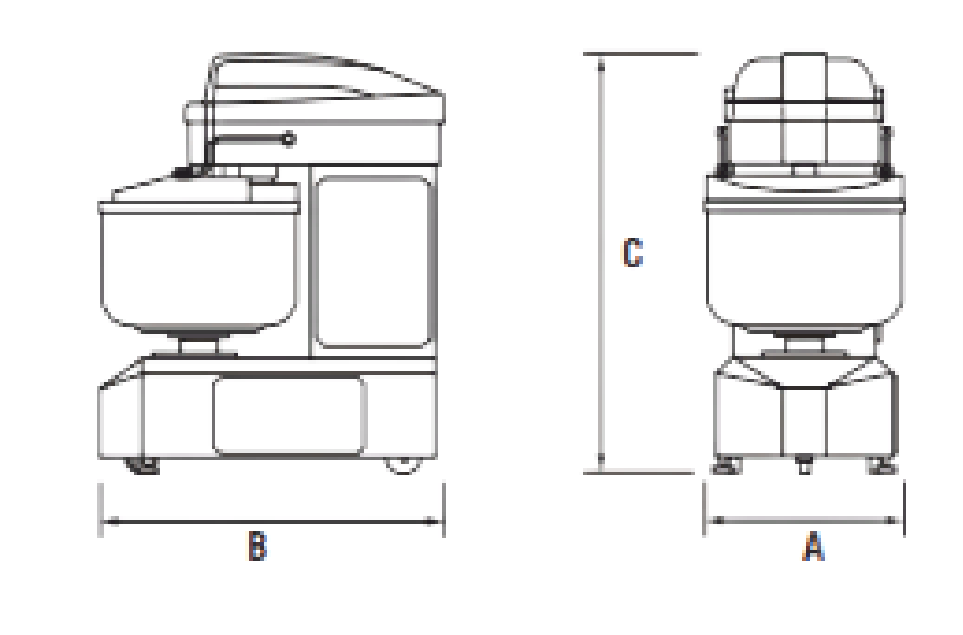

Overall dimensions
Size unit：MM
A | B | C |
| 660 | 1140 | 1345 |
| 678 | 1146 | 1345 |
| 780 | 1300 | 1470 |
| 885 | 1401 | 1565 |
| 946 | 1490 | 1565 |
Technical information
Model | Dough capacity | Flour capacity | Bowl volume | EI,Load/kw 1stspeed/2ndspeed | Power | Weight |
M60P | 60kg | 37kg | 100L | 2.1kw/3.7kw | 4.2kw | 449kg |
M80P | 80kg | 50kg | 123L | 2.1kw/3.7kw | 4.25kw | 453kg |
M120P | 120kg | 75kg | 185L | 3.0kw/5.2kw | 5.75kw | 549kg |
M160P | 160kg | 100kg | 270L | 7.5kw/12.5kw | 13.25kw | 780kg |
M200P | 200kg | 125kg | 310L | 7.5kw/12.5kw | 13.25kw | 815kg |
Fixed Bowl Spiral Mixer MX
Fixed bowl spiral mixer，stable structure, sturdy, and easy to operate. Basic model, suitable for various types of dough. Production capacity of 60kg, 80kg, and 120kg.
Dual-speed, unidirectional cylinder rotation, belt drive.
Equipped with a timer, compact structure, and easy-to-use functions. The motor system features dual belts, saving energy.
Can be used with single-phase motors and frequency converters.
Dough mixing is efficient.
Overall dimensions
Size unit：MM
A | B | C |
| 668 | 1170 | 1256 |
| 698 | 1185 | 1256 |
| 779 | 1295 | 1384 |
Technical information
Model | Dough capacity | Flour capacity | Bowl volume | EI,Load/kw 1stspeed/2ndspeed | Power | Weight |
MX60 | 60kg | 37kg | 112L | 1,5kw/3.0kw | 3.55kw | 350kg |
MX80 | 80kg | 50kg | 154L | 2.1kw/3.7kw | 4.25kw | 380kg |
MX120 | 120kg | 75kg | 185L | 2.1kw/4.8kw | 5.35kw | 431kg |
